Remote Window Control API Developer Guide

Service Overview

Remote Window Control is a telematics service that allows users to remotely close or in some cases open vehicle windows through a mobile application.

Service Features

Focus on remote window close functionality
Limited window open functionality (ventilation mode)
Anti-pinch safety functionality
Real-time safety monitoring
Compliance with regional regulations and OEM policies

Legal Requirements

Compliance with vehicle window control related safety regulations
Mandatory application of Anti-pinch safety functionality
Compliance with personal information protection laws
Reflection of regional regulation differences

Key Scenarios

Scenario 1: Remote Window Lock Request and Execution

API Flow by Entity:

📱 App (User):

Window Lock: Request remote window lock control
Command Reception: Receive 202 Accepted response
Push Notification: Receive window lock result push notification
UI Update: Display control results on screen

🚗 Vehicle (TCU):

Command Reception: Receive window lock command from ECARUS
Safety Verification: Check engine status, hardware override detection
BCM Control: Transmit window lock signal to BCM
Result Publication: Publish success/failure results to ECARUS

🏢 Call Center:

Proxy Lock: Lock window on behalf of customer
Status Check: Check window lock status
Result Reception: Receive window lock results

Scenario 2: Window Lock Release and Status Monitoring

API Flow by Entity:

📱 App (User):

Window Lock Release: Request remote window lock release control
Command Reception: Receive 202 Accepted response
Push Notification: Receive window lock release result push notification
Status Query: Check window lock status

🚗 Vehicle (TCU):

Command Reception: Receive window lock release command
BCM Control: Transmit window lock release signal to BCM
Status Transmission: Transmit lock release status to server
Event Publication: Publish status change events

🏢 Call Center:

Proxy Release: Release window lock on behalf of customer
Status Monitoring: Real-time window lock status check
History Query: Query window control history

Scenario 3: Window Settings Management and Diagnostics

API Flow by Entity:

📱 App (User):

Settings Query: Query window settings
Settings Update: Update window settings
Specification Query: Query window specifications
Diagnostics Query: Query window system diagnostics

🚗 Vehicle (TCU):

Settings Application: Automatic application of window settings
Specification Report: Report window specification information to server
Diagnostics Execution: Diagnose window related component status
Status Report: Report current window status

🏢 Call Center:

Settings Management: Manage customer settings and Update window settings
Specification Management: Automatic window specification management
Diagnostics Management: Automatic system diagnostics management
History Management: Automatic control history management

Scenario 4: Window Control Failure and Exception Handling

API Flow by Entity:

📱 App (User):

Command Request: Window lock/release command request
Failure Notification: Receive failure reasons via push notification
Status Check: Check current window status
Command Cancellation: Cancel executing command

🚗 Vehicle (TCU):

Safety Verification: Check engine status, hardware override detection
Failure Processing: Process failure when safety conditions violated
Result Publication: Publish failure results and error codes
Status Report: Report current window status

🏢 Call Center:

History Query: Query failure history
Diagnostics Check: Check system diagnostics
Customer Support: Analyze failure causes and guide customers

Key Features

📱 Features to Implement in App

1. Remote Window Control Function

Window Lock: Request remote window lock control
Window Lock Release: Request remote window lock release control
Command Cancellation: Request cancellation of executing command
Status Query: Immediate window lock status query

2. Settings Management Function

Settings Query: Query window settings
Settings Update: Update window settings
Specification Query: Query window specifications

3. Real-time Status Monitoring Function

Real-time Updates: Real-time status monitoring via SSE stream
Event Processing: Real-time processing of window status change events
Status Display: Real-time display of window lock/release status

4. Notification and UI Functions

Push Notifications: Receive window control result push notifications
Error Guidance: User-friendly error messages on failure
Status Visualization: Visual representation of window status

🏢 Features to Implement in Call Center

1. Proxy Window Control Function

Proxy Lock: Lock window on behalf of customer
Proxy Release: Release window lock on behalf of customer
Command Cancellation: Process command cancellation
Status Check: Check window lock status

2. History and Diagnostics Management Function

History Query: Query window control history
Diagnostics Query: Query window system diagnostics
Specification Query: Query window specifications
Statistics Generation: Generate window control usage statistics

3. Settings Management Function

Settings Query: Check customer window settings
Settings Update: Support customer setting changes
Settings Synchronization: Automatic settings synchronization with vehicle

4. Customer Support Function

Problem Solving: Analyze window control failure causes
Settings Support: Support customer window settings
Security Monitoring: Monitor abnormal access patterns

🚗 Functions Processed by Vehicle (TCU)

1. Window Control Function

Command Reception: Receive window control commands
Safety Verification: Check engine status, hardware override detection
BCM Control: Transmit window lock/release signals to BCM
Result Publication: Publish control results

2. Status Management Function

Status Collection: Real-time collection of window status data
Event Publication: Publish status change events
Status Report: Report current window status

3. Safety Function

Hardware Override Detection: Detect physical switch priority
Anti-pinch: Automatic stop when pinch detected
Engine Status Check: Check engine/ACC status

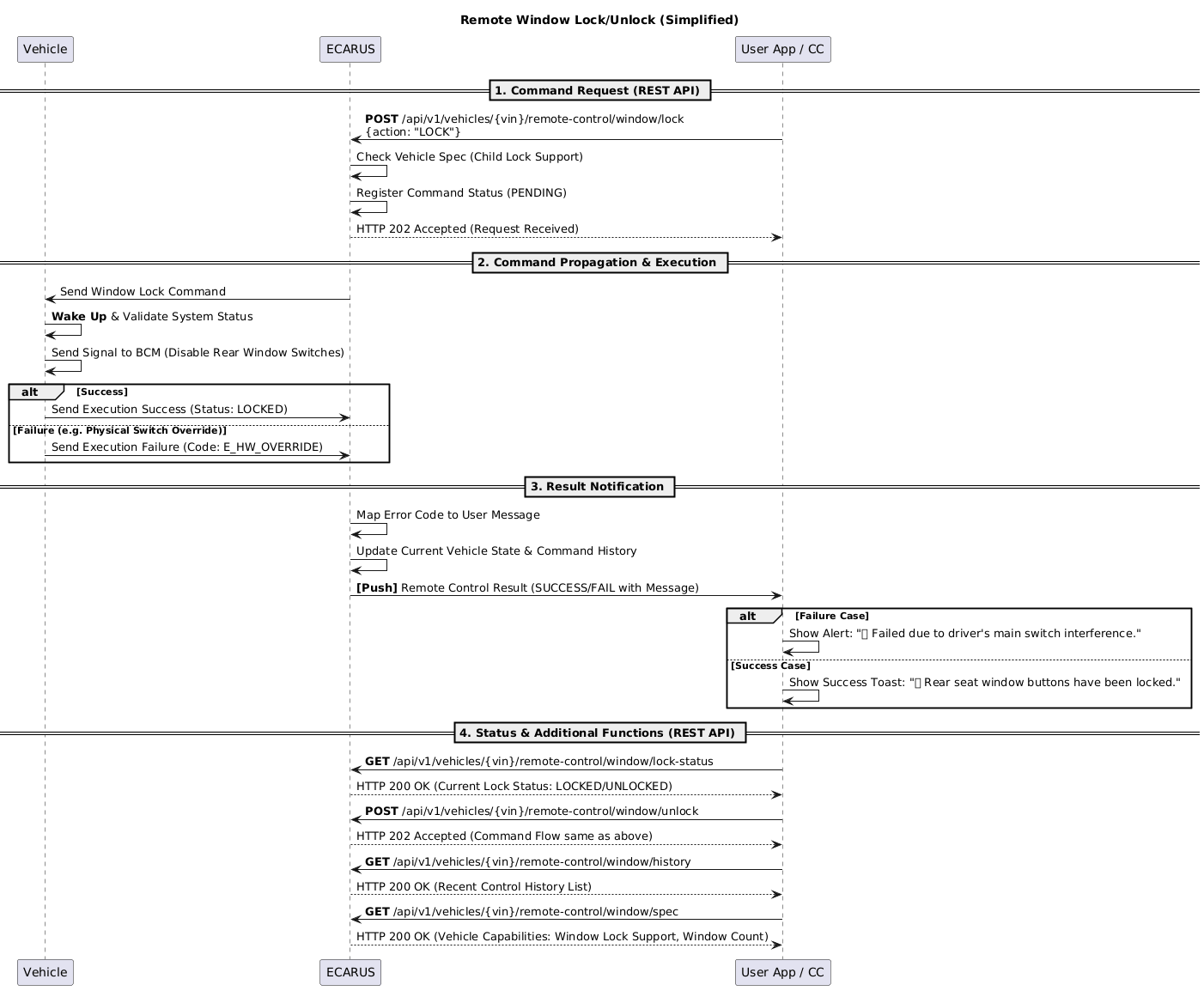

Sequence Diagram

Remote Window Control System Flow

Remote Window Control

API Endpoints

Refer to the Common API Specifications for headers, response codes, and error formats.

Window Lock

bash

curl -X POST "https://api.ecarus.run/api/v1/remotecontrol/vehicles/KMHSH81C7LU123456/window/lock" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     -H "Content-Type: application/json" \
     -d '{"action": "LOCK", "target": "REAR_WINDOWS"}'

Window Lock Release

bash

curl -X POST "https://api.ecarus.run/api/v1/remotecontrol/vehicles/KMHSH81C7LU123456/window/unlock" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     -H "Content-Type: application/json" \
     -d '{"action": "UNLOCK", "target": "REAR_WINDOWS"}'

Window Lock Status Query

bash

curl -X GET "https://api.ecarus.run/api/v1/remotecontrol/vehicles/KMHSH81C7LU123456/window/lock-status" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d"

Window Control Cancellation

bash

curl -X POST "https://api.ecarus.run/api/v1/remotecontrol/vehicles/KMHSH81C7LU123456/window/cancel" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     -H "Content-Type: application/json" \
     -d '{"correlationId": "uuid-12345678", "reason": "User cancellation", "force": false}'

Window Control History Query

bash

curl -X GET "https://api.ecarus.run/api/v1/remotecontrol/vehicles/KMHSH81C7LU123456/window/history?period=24h&limit=50" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d"

Window Specification Query

bash

curl -X GET "https://api.ecarus.run/api/v1/remotecontrol/vehicles/KMHSH81C7LU123456/window/spec" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d"

Window Control Settings Query

bash

curl -X GET "https://api.ecarus.run/api/v1/remotecontrol/vehicles/KMHSH81C7LU123456/window/config" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d"

Window Control Settings Update

bash

curl -X PUT "https://api.ecarus.run/api/v1/remotecontrol/vehicles/KMHSH81C7LU123456/window/config" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     -H "Content-Type: application/json" \
     -d '{"window": {"remoteControlEnabled": true, "childLockDefault": true, "autoLockEnabled": false, "individualControl": false}, "safety": {"hardwareOverrideDetection": true, "mainSwitchPriority": true, "interferenceTimeout": 3.0}}'

Window Control Diagnostics Information Query

bash

curl -X GET "https://api.ecarus.run/api/v1/remotecontrol/vehicles/KMHSH81C7LU123456/window/diagnostics" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d"

Window Control Real-time Update Stream (SSE)

Note: Recommended to access via browser or use a dedicated SSE client

bash

curl -X GET "https://api.ecarus.run/api/v1/remotecontrol/vehicles/KMHSH81C7LU123456/window/updates/stream" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     -H "Accept: text/event-stream"

Data Models

Window Control Request

json

{
  "action": "LOCK",
  "target": "REAR_WINDOWS"
}

action: OPEN, CLOSE, LOCK, UNLOCK, STOP
target: FRONT_LEFT, FRONT_RIGHT, REAR_LEFT, REAR_RIGHT, FRONT_WINDOWS, REAR_WINDOWS, ALL_WINDOWS

Window Control Response

json

{
  "commandId": "cmd-uuid-12345",
  "vin": "KMHSH81C7LU123456",
  "status": "PENDING",
  "message": "Window control command received",
  "estimatedDuration": 8,
  "timestamp": "2026-01-12T14:30:00Z"
}

status: PENDING, PROCESSING, SUCCESS, FAILED, CANCELLED

Window Lock Status Response

json

{
  "vin": "KMHSH81C7LU123456",
  "windows": {
    "frontLeft": {"isLocked": true, "position": 0},
    "frontRight": {"isLocked": true, "position": 0},
    "rearLeft": {"isLocked": false, "position": 25},
    "rearRight": {"isLocked": false, "position": 50}
  },
  "childSafetyLock": {
    "isEngaged": true,
    "controlledWindows": ["REAR_LEFT", "REAR_RIGHT"]
  },
  "timestamp": "2026-01-12T14:30:00Z"
}

position: 0-100% (0=fully closed, 100=fully open)

Window Cancellation Request

json

{
  "correlationId": "uuid-12345678",
  "reason": "User cancellation",
  "force": false
}

reason: User cancellation, Safety stop, System error, Emergency stop
force: Force cancellation flag (true means immediate stop)

Window Control History Request (Query Parameters)

vin: KMHSH81C7LU123456
period: 24h
limit: 50
offset: 0

period: 1h, 24h, 7d, 30d

Window Control History Response

json

{
  "vin": "KMHSH81C7LU123456",
  "history": [
    {
      "commandId": "cmd-uuid-12345",
      "action": "LOCK",
      "target": "REAR_WINDOWS",
      "timestamp": "2026-01-12T14:30:00Z",
      "status": "SUCCESS",
      "executionTime": 8,
      "userId": "user-123",
      "source": "APP"
    }
  ],
  "total": 1,
  "hasMore": false
}

source: APP, CALL_CENTER, SYSTEM
status: PENDING, PROCESSING, SUCCESS, FAILED, CANCELLED

Window Specification Response

json

{
  "vin": "KMHSH81C7LU123456",
  "windowTypes": ["POWER_WINDOWS", "SUNROOF"],
  "maxWindows": 4,
  "hasAutoLock": true,
  "hasChildSafetyLock": true,
  "supportedActions": ["OPEN", "CLOSE", "LOCK", "UNLOCK", "STOP"],
  "safetyFeatures": ["ANTI_PINCH", "CHILD_SAFETY_LOCK", "OBSTACLE_DETECTION"]
}

windowTypes: MANUAL, POWER_WINDOWS, ELECTRIC
supportedActions: List of supported actions

Window Control Settings Response

json

{
  "vin": "KMHSH81C7LU123456",
  "window": {
    "remoteControlEnabled": true,
    "childLockDefault": true,
    "autoLockEnabled": false,
    "individualControl": false,
    "maxOpenPosition": 100,
    "speedControl": "NORMAL"
  },
  "safety": {
    "hardwareOverrideDetection": true,
    "mainSwitchPriority": true,
    "interferenceTimeout": 3.0,
    "pinchSensitivity": "HIGH"
  },
  "updatedTime": "2026-01-12T10:00:00Z"
}

speedControl: SLOW, NORMAL, FAST
pinchSensitivity: LOW, MEDIUM, HIGH
maxOpenPosition: Maximum open position (0-100%)

Window Control Diagnostics Information Response

json

{
  "vin": "KMHSH81C7LU123456",
  "systemStatus": "NORMAL",
  "components": [
    {
      "name": "Window Motor Front Left",
      "status": "ACTIVE",
      "health": 98,
      "lastMaintenance": "2025-06-15T00:00:00Z",
      "operatingHours": 1250
    },
    {
      "name": "Window Motor Front Right",
      "status": "ACTIVE",
      "health": 97,
      "lastMaintenance": "2025-06-15T00:00:00Z",
      "operatingHours": 1180
    },
    {
      "name": "Anti-Pinch Sensor",
      "status": "ACTIVE",
      "health": 95,
      "lastCalibration": "2025-12-01T00:00:00Z",
      "sensitivityLevel": "HIGH"
    }
  ],
  "alerts": [],
  "lastCheck": "2026-01-12T14:30:00Z"
}

systemStatus: NORMAL, WARNING, ERROR, OFFLINE
component.status: ACTIVE, INACTIVE, ERROR, MAINTENANCE_REQUIRED

Window Control Status Update (SSE)

json

{
  "type": "WINDOW_STATUS_UPDATE",
  "vin": "KMHSH81C7LU123456",
  "timestamp": "2026-01-12T14:30:15Z",
  "data": {
    "windowId": "FRONT_LEFT",
    "position": 25,
    "isMoving": false,
    "isLocked": false,
    "changeType": "OPENED"
  }
}

type: WINDOW_STATUS_UPDATE, WINDOW_COMMAND_RESULT, WINDOW_SAFETY_ALERT
changeType: OPENED, CLOSED, LOCKED, UNLOCKED, STOPPED, OBSTRUCTION_DETECTED, SAFETY_STOP

Security and Privacy

Authentication and Authorization

User authentication token required (JWT/OAuth2)
Vehicle access permission verification
Window control permission verification

Data Security

All API communication encrypted with HTTPS/TLS
Command Signing to prevent command forgery
Priority processing of safety-related data

Privacy Protection

Explicit consent for vehicle status information collection
Specify purpose of window control history collection
Compliance with command execution history retention period policy

Access Control

VIN-based vehicle access permission verification
Multi-factor authentication requirement
Command Nonce and ID usage
Idempotency-based duplicate command prevention

Exception Handling

Connection Failure: Support offline mode, cache last status
Slow Response: Loading indicator, timeout handling
Server Down: Display error message, suggest retry

Vehicle Offline: Notify command transmission failure, queue processing
Safety Conditions Not Met: Reject command and clearly guide reasons
Regulation Limitations: Notify function limitations due to regional regulations

Anti-pinch Trigger: Immediate stop and safety notification
Overcurrent Detection: Immediate stop and protection notification
Sensor Error: Function limitation and notification

Partial Success: Detailed guidance when only some windows operate
Safety Stop: Clearly display safety reasons
Timeout: Notify Command TTL expiration

Test Setup

Base URL: https://api.ecarus.run/api/v1/remotecontrol
Authentication Token: sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d
Sample VIN: KMHSH81C7LU123456

Use Swagger UI for interactive API testing. Jennifer

Deployment Considerations

App Store Registration

Request vehicle control permissions
Request biometric authentication permissions
Request short-range communication permissions (NFC/BLE)

Legal Regulation Compliance

Compliance with personal information protection laws
Check vehicle window control related regulations
Reflect regional regulation differences
Compliance with Anti-pinch safety functionality related laws

Vehicle Compatibility

Support various vehicle models
Consider OEM-specific window control method differences
Reflect regional regulation differences
Reflect window configuration differences (2-door/4-door, etc.)

Remote Window Control API Developer Guide ​

Service Overview ​

Service Features ​

Legal Requirements ​

Key Scenarios ​

Scenario 1: Remote Window Lock Request and Execution ​

Scenario 2: Window Lock Release and Status Monitoring ​

Scenario 3: Window Settings Management and Diagnostics ​

Scenario 4: Window Control Failure and Exception Handling ​

Key Features ​

📱 Features to Implement in App ​

1. Remote Window Control Function ​

2. Settings Management Function ​

3. Real-time Status Monitoring Function ​

4. Notification and UI Functions ​

🏢 Features to Implement in Call Center ​

1. Proxy Window Control Function ​

2. History and Diagnostics Management Function ​

3. Settings Management Function ​

4. Customer Support Function ​

🚗 Functions Processed by Vehicle (TCU) ​

1. Window Control Function ​

2. Status Management Function ​

3. Safety Function ​

Sequence Diagram ​

Remote Window Control System Flow ​

API Endpoints ​

Window Lock ​

Window Lock Release ​

Window Lock Status Query ​

Window Control Cancellation ​

Window Control History Query ​

Window Specification Query ​

Window Control Settings Query ​

Window Control Settings Update ​

Window Control Diagnostics Information Query ​

Window Control Real-time Update Stream (SSE) ​

Data Models ​

Window Control Request ​

Window Control Response ​

Window Lock Status Response ​

Window Cancellation Request ​

Window Control History Request (Query Parameters) ​

Window Control History Response ​

Window Specification Response ​

Window Control Settings Response ​

Window Control Diagnostics Information Response ​

Window Control Status Update (SSE) ​

Security and Privacy ​

Authentication and Authorization ​

Data Security ​

Privacy Protection ​

Access Control ​

Exception Handling ​

Network Related ​

Vehicle Status Related ​

Safety Related ​

Command Execution Related ​

Test Setup ​

Deployment Considerations ​

App Store Registration ​

Legal Regulation Compliance ​

Vehicle Compatibility ​

Remote Window Control API Developer Guide

Service Overview

Service Features

Legal Requirements

Key Scenarios

Scenario 1: Remote Window Lock Request and Execution

Scenario 2: Window Lock Release and Status Monitoring

Scenario 3: Window Settings Management and Diagnostics

Scenario 4: Window Control Failure and Exception Handling

Key Features

📱 Features to Implement in App

1. Remote Window Control Function

2. Settings Management Function

3. Real-time Status Monitoring Function

4. Notification and UI Functions

🏢 Features to Implement in Call Center

1. Proxy Window Control Function

2. History and Diagnostics Management Function

3. Settings Management Function

4. Customer Support Function

🚗 Functions Processed by Vehicle (TCU)

1. Window Control Function

2. Status Management Function

3. Safety Function

Sequence Diagram

Remote Window Control System Flow

API Endpoints

Window Lock

Window Lock Release

Window Lock Status Query

Window Control Cancellation

Window Control History Query

Window Specification Query

Window Control Settings Query

Window Control Settings Update

Window Control Diagnostics Information Query

Window Control Real-time Update Stream (SSE)

Data Models

Window Control Request

Window Control Response

Window Lock Status Response

Window Cancellation Request

Window Control History Request (Query Parameters)

Window Control History Response

Window Specification Response

Window Control Settings Response

Window Control Diagnostics Information Response

Window Control Status Update (SSE)

Security and Privacy

Authentication and Authorization

Data Security

Privacy Protection

Access Control

Exception Handling

Network Related

Vehicle Status Related

Safety Related

Command Execution Related

Test Setup

Deployment Considerations

App Store Registration

Legal Regulation Compliance

Vehicle Compatibility
