Curfew Limit API Developer Guide

Service Overview

Curfew Service is a telematics-based function that applies US minor (16-17 years old) temporary permit driver late-night driving restriction policy to vehicle services to monitor and control vehicle usage during specific time periods.

Service Features

Automatic detection of late-night vehicle driving
Time-based vehicle usage restriction policy
Guardian/administrator real-time alerts
Vehicle engine control function (optional)
Enhanced safety for young drivers

Legal Requirements

Compliance with US regional Curfew-related regulations
Driver prior consent required
Compliance with personal and location information protection
Prohibition of forced engine shutdown during driving

Key Scenarios

Scenario 1: Curfew Policy Setting

API Flow by Entity:

📱 App (User):

Set Policy: Set specific day/time period curfew rules
Query Policy: Verify currently configured curfew policy
Set Exception: Temporary curfew release

🚗 Vehicle (TCU):

Engine Event Transmission: Transmit engine start events to ECARUS
Status Report: Report current vehicle usage status during curfew hours

🏢 Call Center:

Violation Monitoring: Real-time violation monitoring
History Query: Query violation history

Key Features

App Features

Policy Setting: Set specific day/time period curfew rules
Policy Query: Check currently configured curfew policy
Violation History: Check past violation records
Statistics Query: Violation patterns and statistical analysis
Exception Setting: Temporary curfew release
Exception Query: Check configured exception status
Real-time Monitoring: Receive real-time alerts via SSE stream
Emergency Support: Temporary monitoring enhancement

Call Center Features

Violation Monitoring: Real-time violation monitoring
Violation History: Query violation history
Statistical Analysis: Analyze multi-vehicle violation patterns
Vehicle Control: Remote engine stop for serious violations
Escalation Management: Manage and respond to repeat violators

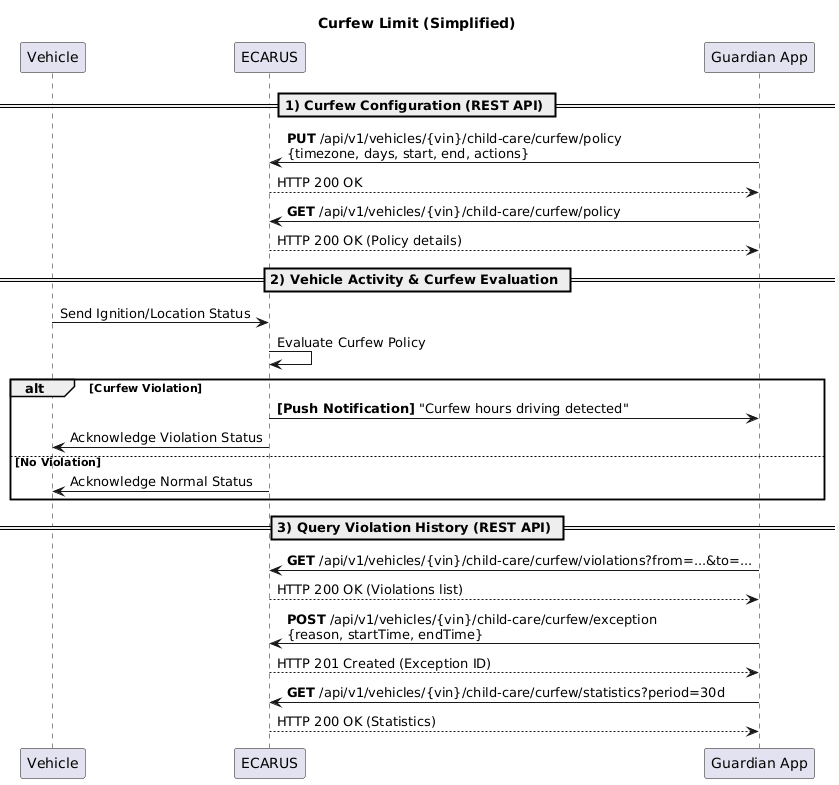

Sequence Diagram

Curfew System Flow

Curfew

Platform Integration Considerations

Time Determination Logic

Server-based time determination
Timezone/DST handling
Vehicle local time and server time synchronization
Consider regional time differences

Vehicle Control Method

Soft Control: Alert-focused control
Hard Control: Vehicle restriction control (optional)
Prohibition of forced engine shutdown during driving
Next engine start restriction or speed limit

Driver Identification

Apply vehicle-level policy when digital key not used
Apply policy based on time only
Individual driver identification not possible

Permission Management

Only parent or administrator adult users have release permission
Temporary release function
Function differences by permission level

API Endpoints

Refer to the Common API Specifications for headers, response codes, and error formats.

Curfew Policy

Curfew Policy Query

bash

curl -X GET "https://api.ecarus.run/api/v1/childcare/vehicles/KMHSH81C7LU123456/curfew/policy" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d"

Curfew Policy Setting

bash

curl -X PUT "https://api.ecarus.run/api/v1/childcare/vehicles/KMHSH81C7LU123456/curfew/policy" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     -H "Content-Type: application/json" \
     -d '{
           "enabled": true,
           "timezone": "Asia/Seoul",
           "days": ["monday", "wednesday", "friday"],
           "timeWindow": {"start": "21:00", "end": "07:00"},
           "actions": ["notification"]
         }'

Curfew Statistics Query

bash

curl -X GET "https://api.ecarus.run/api/v1/childcare/vehicles/KMHSH81C7LU123456/curfew/statistics?period=30d" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d"

Curfew Monitoring and Exception Handling

Curfew Violation History Query

bash

curl -X GET "https://api.ecarus.run/api/v1/childcare/vehicles/KMHSH81C7LU123456/curfew/violations?limit=10&offset=0" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d"

Curfew Exception Setting

bash

curl -X POST "https://api.ecarus.run/api/v1/childcare/vehicles/KMHSH81C7LU123456/curfew/exception" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     -H "Content-Type: application/json" \
     -d '{"reason": "After-school program ended late", "startTime": "2026-03-06T21:00:00Z", "endTime": "2026-03-06T23:00:00Z"}'

Curfew Exception List Query

bash

curl -X GET "https://api.ecarus.run/api/v1/childcare/vehicles/KMHSH81C7LU123456/curfew/exceptions?status=active" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d"

Curfew Real-time Event Reception (SSE)

Note: Recommend accessing via browser or using dedicated SSE client

bash

curl -N -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     "https://api.ecarus.run/api/v1/childcare/vehicles/KMHSH81C7LU123456/curfew/events"

Data Models

Curfew Policy Setting

json

{
  "enabled": true,
  "timezone": "Asia/Seoul",
  "days": ["monday", "wednesday", "friday"],
  "timeWindow": {
    "start": "21:00",
    "end": "07:00"
  },
  "actions": ["notification"]
}

Curfew Violation Event

json

{
  "violationId": "vio_001",
  "vin": "KMHSH81C7LU123456",
  "timestamp": "2026-02-10T22:15:00Z",
  "severity": "MEDIUM",
  "location": {
    "latitude": 37.5665,
    "longitude": 126.9780,
    "address": "2 Taepyeong-ro, Jung-gu, Seoul"
  },
  "duration": 45,
  "resolved": false
}

Curfew Policy Response

json

{
  "enabled": true,
  "timezone": "Asia/Seoul",
  "days": ["monday", "wednesday", "friday"],
  "timeWindow": {
    "start": "21:00",
    "end": "07:00"
  },
  "actions": ["notification"],
  "exceptions": [
    {
      "exceptionId": "exc_001",
      "reason": "After-school program ended late",
      "startTime": "2026-03-06T21:00:00Z",
      "endTime": "2026-03-06T23:00:00Z",
      "status": "active"
    }
  ],
  "statistics": {
    "totalViolations": 5,
    "thisMonth": 2,
    "lastMonth": 3
  },
  "createdAt": "2026-01-10T10:00:00Z",
  "updatedAt": "2026-02-10T22:15:00Z"
}

Curfew Exception Setting

json

{
  "reason": "After-school program ended late",
  "startTime": "2026-03-06T21:00:00Z",
  "endTime": "2026-03-06T23:00:00Z"
}

Curfew Exception List

json

{
  "exceptions": [
    {
      "exceptionId": "exc_001",
      "reason": "After-school program ended late",
      "startTime": "2026-03-06T21:00:00Z",
      "endTime": "2026-03-06T23:00:00Z",
      "status": "active",
      "createdAt": "2026-03-06T20:30:00Z"
    },
    {
      "exceptionId": "exc_002",
      "reason": "Family emergency",
      "startTime": "2026-03-05T22:00:00Z",
      "endTime": "2026-03-05T23:30:00Z",
      "status": "expired",
      "createdAt": "2026-03-05T21:45:00Z"
    }
  ],
  "pagination": {
    "total": 2,
    "limit": 10,
    "offset": 0,
    "hasMore": false
  }
}

Real-time Violation Event (SSE)

json

{
  "eventType": "CURFEW_VIOLATION",
  "violationId": "vio_001",
  "vin": "KMHSH81C7LU123456",
  "timestamp": "2026-02-10T22:15:00Z",
  "severity": "MEDIUM",
  "data": {
    "location": {
      "latitude": 37.5665,
      "longitude": 126.9780,
      "address": "2 Taepyeong-ro, Jung-gu, Seoul"
    },
    "duration": 45,
    "message": "Vehicle detected during curfew hours"
  }
}

Authentication and Security

Authentication Requirements

User authentication token required (JWT/OAuth2)
Vehicle access permission verification
Curfew policy setting permission
Driver prior consent verification

Data Security

All API communication encrypted with HTTPS/TLS
Security measures when transmitting driving data
Sensitive driving information stored only on server
Time data encryption processing

Privacy Protection

Driver prior consent mandatory
Personal and location information protection compliance
Data collection purpose specification
Data retention period policy compliance

Access Control

VIN-based vehicle access permission verification
User-specific curfew policy access management
Violation history access control
Exception setting permission management

Exception Handling

Time Synchronization Error: Server time and vehicle time synchronization retry
Timezone Error: Timezone configuration validation
DST Change: Automatic DST handling
Time Determination Failure: Fallback to UTC time

Engine Control Failure: Vehicle control command retry
Control Command Timeout: Control timeout handling
Vehicle Communication Error: Vehicle communication retry
Safety Violation: Prohibition of dangerous control commands

Policy Setting Error: Policy configuration validation
Policy Conflict: Multi-policy conflict resolution
Policy Application Failure: Policy retry mechanism
Exception Setting Error: Exception setting validation

Connection Failure: Offline mode support and data storage
Slow Response: Loading indicator and timeout handling
Server Down: Error message display and retry suggestion

Test Setup

Base URL: https://api.ecarus.run/api/v1/childcare
Authentication Token: sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d
Sample VIN: KMHSH81C7LU123456

Use Swagger UI for interactive API testing.

Deployment Considerations

App Store Registration

Request driving monitoring permissions
Request vehicle control permissions (if applicable)
Clear explanation of curfew functionality
Driver consent requirement explanation

Legal Regulation Compliance

Compliance with US regional Curfew-related regulations
Driver prior consent mandatory
Compliance with personal and location information protection
Prohibition of forced engine shutdown during driving

Time Accuracy

Server time synchronization optimization
Timezone handling accuracy
DST change automatic handling
Time determination reliability

Vehicle Control Safety

Safe vehicle control command design
Emergency situation handling
Control command validation
Safety protocol compliance
