Manual Diagnosis API Developer Guide

Service Overview

Manual Diagnosis Service is a telematics service where customers or mechanics directly request diagnosis to check vehicle abnormal conditions.

Service Features

User direct diagnosis request function
Real-time diagnosis progress monitoring
Detailed vehicle diagnosis result verification
Remote diagnosis support before visiting repair center
Support for various user groups

Legal Requirements

Compliance with personal information protection laws
Mandatory vehicle diagnosis data collection consent
Compliance with diagnosis authority management policies
Compliance with vehicle control-related regulations

Key Scenarios

API Flow by Entity:

🏢 Call Center:

Session Request: Request vehicle diagnosis session creation
Diagnosis Command: Transmit diagnosis command (LIVE_STREAM, READ_DTC)
Session Termination: Request diagnosis session termination

📱 User App:

Diagnosis Consent: Provide consent for remote diagnosis execution
Monitoring: Real-time check of diagnosis progress

🚗 Vehicle (TCU):

Diagnosis Session Reception: Receive diagnosis session request from ECARUS
Real-time Data Transmission: Live data streaming (RPM, COOLANT_TEMP, etc.)
ECU Diagnosis Execution: Read DTC codes and collect diagnosis data
Diagnosis Session Termination: Process session termination command

Scenario 2: Real-time Diagnosis Data Streaming

API Flow by Entity:

🏢 Call Center:

Stream Control: Transmit CMD_LIVE_STREAM or CMD_READ_DTC command
Data Reception: Real-time reception of live data via SSE
Analysis: Real-time analysis of received diagnosis data

📱 User App:

Diagnosis Progress Check: Check currently diagnosing items and status
Real-time Alerts: Receive diagnosis progress push notifications

🚗 Vehicle (TCU):

Data Streaming Start: Transmit live data at 1-second intervals
ECU Communication: Request ECU data using UDS protocol
Diagnosis Data Transmission: Transmit real-time data such as RPM, temperature
DTC Code Transmission: Transmit diagnostic error codes

Scenario 3: Diagnosis Management and Report Generation

API Flow by Entity:

🏢 Call Center:

Session Query: Query active diagnosis session list
History Query: Query past diagnosis history
DTC Query: Query DTC code list
Report Query: Check final diagnosis results

📱 User App:

Diagnosis Result Check: Check final diagnosis results and reports
History Management: Query past diagnosis history and results

🚗 Vehicle (TCU):

Diagnosis Session Management: Maintain and manage session status
Data Storage: Temporary storage of diagnosis data

Key Features

📱 Features to Implement in App

Diagnosis Consent: Provide consent for remote diagnosis execution
Consent Status: Real-time check of current consent status

2. Diagnosis Status Monitoring

Real-time Status: Real-time display of current diagnosis progress

3. Diagnosis Result Verification

Result Query: Check final diagnosis results
History Query: Query past diagnosis history and results

🏢 Features to Implement in Call Center

4. Administrator Functions

Session Management: Overall diagnosis session management and monitoring
Technician Management: Diagnosis technician permissions and management
Quality Management: Diagnosis quality verification and improvement
Statistical Analysis: Diagnosis statistics and performance analysis

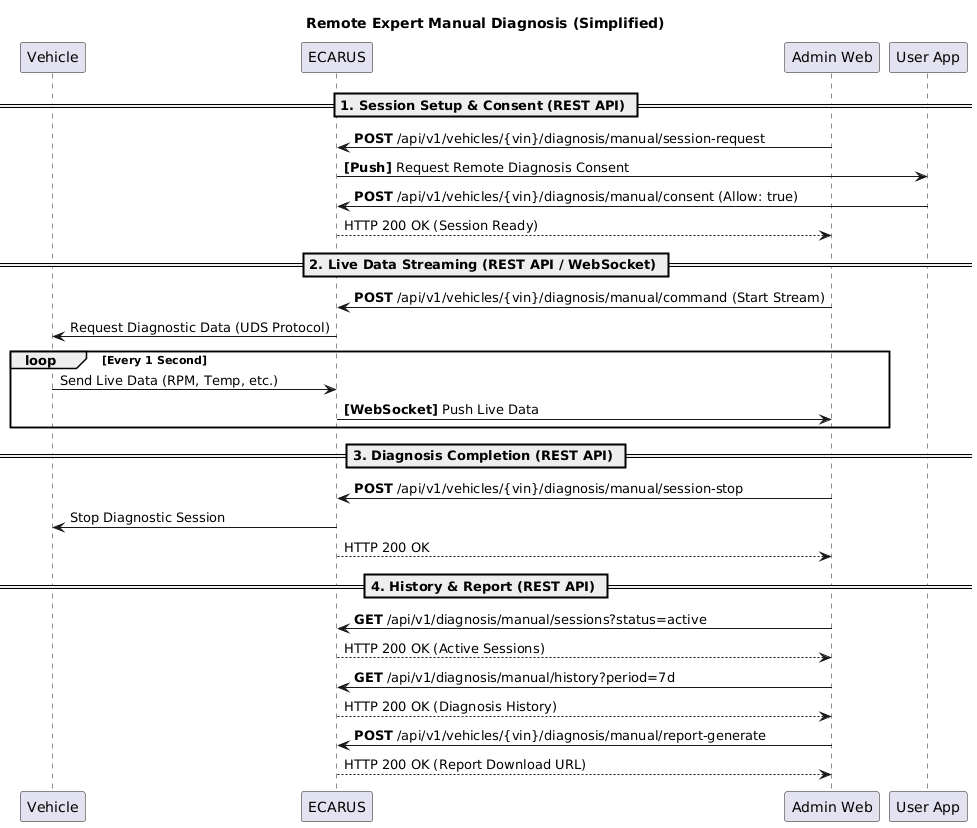

Sequence Diagram

Manual Diagnosis System Flow

Manual Diagnosis

API Endpoints

Refer to the Common API Specifications for headers, response codes, and error formats.

Manual Diagnosis Session Start

Manual Diagnosis Session Request

bash

curl -X POST "https://api.ecarus.run/api/v1/diagnosis/vehicles/KMHSH81C7LU123456/manual/session-request" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     -H "Content-Type: application/json" \
     -d '{"reason": "Engine Noise Check", "technicianId": "TECH_001"}'

bash

curl -X POST "https://api.ecarus.run/api/v1/diagnosis/vehicles/KMHSH81C7LU123456/manual/consent" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     -H "Content-Type: application/json" \
     -d '{"allow": true, "requestId": "req_001"}'

Manual Diagnosis Session Stop

bash

curl -X POST "https://api.ecarus.run/api/v1/diagnosis/vehicles/KMHSH81C7LU123456/manual/session-stop" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     -H "Content-Type: application/json" \
     -d '{"sessionId": "sess_001", "reason": "DIAGNOSIS_COMPLETED"}'

Diagnosis Command Transmission

bash

curl -X POST "https://api.ecarus.run/api/v1/diagnosis/vehicles/KMHSH81C7LU123456/manual/command" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     -H "Content-Type: application/json" \
     -d '{"cmd": "CMD_LIVE_STREAM", "pids": ["RPM", "COOLANT_TEMP"]}'

Manual Diagnosis Session Report Query

bash

curl -X GET "https://api.ecarus.run/api/v1/diagnosis/vehicles/KMHSH81C7LU123456/manual/session/sess_001/report" \
     -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d"

Manual Diagnosis Real-time Event Reception (SSE)

Note: Recommend accessing via browser or using dedicated SSE client

bash

curl -N -H "Authorization: Bearer sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d" \
     "https://api.ecarus.run/api/v1/diagnosis/vehicles/KMHSH81C7LU123456/manual/live-data"

Data Models

Diagnosis Session Request

json

{
  "vin": "KMHSH81C7LU123456",
  "reason": "Engine Noise Check",
  "technicianId": "TECH_001"
}

Diagnosis Command

json

{
  "cmd": "CMD_LIVE_STREAM",
  "pids": ["RPM", "COOLANT_TEMP", "SPEED"],
  "sessionId": "sess_001"
}

json

{
  "allow": true,
  "requestId": "req_001",
  "timestamp": "2026-01-13T14:30:00Z"
}

Diagnosis Session Status

json

{
  "sessionId": "sess_001",
  "vin": "KMHSH81C7LU123456",
  "status": "ACTIVE",
  "startTime": "2026-01-13T14:30:00Z",
  "technicianId": "TECH_001",
  "reason": "Engine Noise Check",
  "consent": {
    "status": "GRANTED",
    "timestamp": "2026-01-13T14:31:00Z"
  },
  "currentCommand": {
    "cmd": "CMD_LIVE_STREAM",
    "status": "EXECUTING",
    "startTime": "2026-01-13T14:32:00Z"
  }
}

Live Data Stream Event

json

{
  "eventType": "LIVE_DATA",
  "sessionId": "sess_001",
  "vin": "KMHSH81C7LU123456",
  "timestamp": "2026-01-13T14:32:00Z",
  "data": {
    "rpm": 2500,
    "coolantTemp": 85.5,
    "speed": 65.2,
    "fuelPressure": 45.8,
    "throttlePosition": 12.5
  }
}

Diagnosis Report

json

{
  "reportId": "report-12345",
  "sessionId": "sess_001",
  "vin": "KMHSH81C7LU123456",
  "timestamp": "2026-01-13T14:45:00Z",
  "summary": {
    "overallStatus": "WARNING",
    "dtcCount": 1,
    "criticalIssues": 0,
    "recommendations": ["Service center visit recommended"]
  },
  "dtc": [
    {
      "code": "P0520",
      "description": "Engine Oil Pressure Sensor/Switch Circuit",
      "severity": "MEDIUM",
      "occurrenceCount": 1
    }
  ],
  "liveData": {
    "averageRpm": 2200,
    "maxCoolantTemp": 92.5,
    "dataPoints": 150
  },
  "recommendations": [
    {
      "priority": "MEDIUM",
      "action": "INSPECT_OIL_PRESSURE_SENSOR",
      "description": "Check oil pressure sensor and wiring"
    }
  ]
}

Security and Privacy

Authentication and Authorization

User authentication token required (JWT/OAuth2)
Vehicle access permission verification
Diagnosis consent verification required
Technician authority verification required

Data Security

All API communication encrypted with HTTPS/TLS
Live data streaming security measures
Sensitive vehicle information protection during transmission

Privacy Protection

Explicit consent required for manual diagnosis
Diagnosis purpose specification
Data retention period policy compliance
User right to data deletion guarantee

Access Control

VIN-based vehicle access permission verification
User-specific diagnosis session access management
Technician role-based access control
Abnormal session detection and termination

Exception Handling

Connection Failure: Session timeout and retry processing
Slow Response: Real-time data streaming delay handling
Server Down: Session preservation and recovery

Vehicle OFF: Session termination notification
No ECU Response: Partial diagnosis result notification
Diagnosis Failure: Error notification and retry guidance

Session Timeout: Automatic session termination
Consent Timeout: Session cancellation due to no consent
Concurrent Sessions: Prevent multiple simultaneous sessions

Data Loss: Live data loss notification
Data Corruption: Data integrity verification
Transmission Delay: Real-time data delay handling

Test Setup

Base URL: https://api.ecarus.run/api/v1/diagnosis
Authentication Token: sk_4f9c7b8e2d1a6c0f3e7a9b5d8c1e4f2a7c6d9e0b3f5a8c1d4e7f9b2c6a1e3d
Sample VIN: KMHSH81C7LU123456

Use Swagger UI for interactive API testing.

Deployment Considerations

App Store Registration

Request remote diagnosis permissions
Request push notification permissions
Clear explanation of remote diagnosis functionality

Legal Regulation Compliance

Compliance with personal information protection laws
Mandatory manual diagnosis consent
Compliance with diagnosis authority management policies
Compliance with vehicle control-related regulations

Vehicle Compatibility

Support various vehicle models
Consider ECU communication protocol differences
Reflect OEM-specific diagnosis protocol differences
Consider real-time data transmission capabilities

Session Management

Session timeout policy configuration
Concurrent session prevention mechanisms
Session recovery and failover systems
Session audit logging and monitoring
